BMW 330Ci 2000 Convertible system parts and removal?

Most likely there is a leak in one of the many hydaulic lines for the top. Usually the hydraulic fluid has a distinct smell, with the top partway open try to smell around the left and right well areas of the top for any funny smell. Or look for any shiny looking area and this will be the area of the leak. The bad part is that the top needs to be removed completely to replace any lines that are leaking.

Carefully detach lower soundproofing sheet towards bottom. Carefully pull away upper soundproofing sheet at line side (joint) sideways and then remove towards top. Installation: Opening must be located over plastic retainer .

The images in the list are quite big, so may be you will not be able to see full view of the pictures:----

Right click on the image and select option "open image in new web" if the image is not seen full or its very small to see.-----------

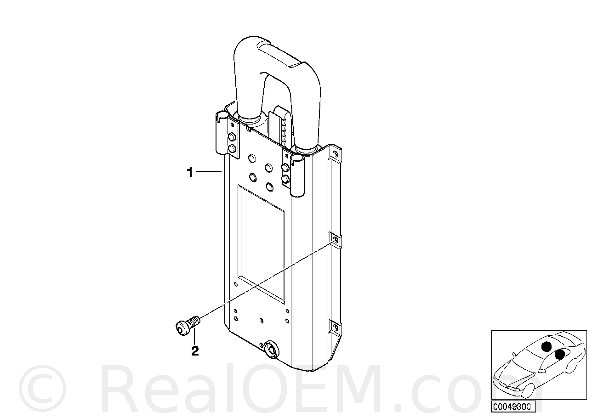

Rollover protection system:---


Parts diagram

No.DescriptionSupplementQty From Up To Part NumberPriceNotes
01ROLLOVER BAR254628260316$832.80
02Fillister-head screwM8X201254627002442$1.09


Folding top:-----

Parts diagram

No.DescriptionSupplementQty From Up To Part NumberPriceNotes
01MANUAL FOLDING TOPDUNKELGRÜN109/200154318243261+core, ENDED
01MANUAL FOLDING TOPANTHRAZIT109/200354318229832ENDED
01MANUAL FOLDING TOPDUNKELBLAU109/200354318243244+core, ENDED
01MANUAL FOLDING TOPANTHRAZIT109/200354317146361$5,978.30
01MANUAL FOLDING TOPDUNKELBLAU109/200354317146362$5,978.30
02Folding-top frame154317030541$3,036.59
03COVER, FOLDING TOPDUNKELGRÜN109/200154318243263$2,380.97
03COVER, FOLDING TOPSCHWARZ154318229839$2,380.97
03COVER, FOLDING TOPDUNKELBLAU154318243262$2,380.97
04LEFT TENSION BELT154318268975$107.28
04RIGHT TENSION BELT154318268976$107.28
05EXPANDING RIVET254317043548$1.53
06Guide pin254317043547$2.52
07FOLDING TOP LOCK154318229819$186.41
08WINDSHIELD FRAME COVER154318229826$227.87
09Centering pin254317043550$12.32
only in conjunction with
--O-ring254317043551$1.83
10Fillister-head screwM6X14607119900529$0.60
11Trim ring154317051491$2.95
12Handle154318163672$25.21
13Headlining clothANTHRAZIT154318229821$735.00
14Fillister-head screwM4X27154318183750$4.88
15StopperSCHWARZ254348228951$5.12
16BASE PLATE LEFT154318204285$118.64
16BASE PLATE RIGHT154318204286$118.64
17Supporting ledge154317043549$54.38
18Adjusting screw254318236439$1.41
19Hex nut with plateAM8-ZNS1607129900644ENDED
19Hex nut with plateM8-ZNS31607129904862$1.12
20Washer654318253827$2.23
21CONSOLE LEFT154318229815$113.20
21CONSOLE RIGHT154318229816$113.20
22HOLLOW BOLT654318253828$7.54
23COVERING CENTER154318263821$11.89
24Microswitch154318254273$66.15
25Set of clips for headliner154347181006$3.26




EH Folding top:--------

Parts diagram

No.DescriptionSupplementQty From Up To Part NumberPriceNotes
01EH Folding topDUNKELGRÜN109/200154348243265+core, ENDED
01EH Folding topANTHRAZIT154347146359$7,919.30
01EH Folding topDUNKELBLAU154347146360$7,876.16
02Folding-top frame154347030542$3,036.59
03COVER, FOLDING TOPDUNKELGRÜN109/200154318243263$2,380.97
03COVER, FOLDING TOPSCHWARZ154318229839$2,380.97
03COVER, FOLDING TOPDUNKELBLAU154318243262$2,380.97
04LEFT TENSION BELT154318268975$107.28
04RIGHT TENSION BELT154318268976$107.28
05EXPANDING RIVET254317043548$1.53
06Guide pin254317043547$2.52
07LEFT FOLDING TOP LOCK154347031361$394.24
07RIGHT FOLDING TOP LOCK154347031362$394.24
08WINDSHIELD FRAME COVER154348263820$227.87
09EMERGENCY OPERATION CRANKL 45X35,SW4167618370817$1.77
10Fillister-head screwM6X14607119900529$0.60
11Cover154347003315ENDED
12FOLDING TOP DRIVE167618370816$244.33
13Headlining clothANTHRAZIT154318229821$735.00
14Fillister-head screwM4X27154318183750$4.88
15StopperSCHWARZ254348228951$5.12
16BASE PLATE LEFT154318204285$118.64
16BASE PLATE RIGHT154318204286$118.64
17Supporting ledge154317043549$54.38
18Adjusting screw254317046636$4.21
19Hex nut with plateAM8-ZNS1607129900644ENDED
19Hex nut with plateM8-ZNS31607129904862$1.12
20Washer654318253827$2.23
21CONSOLE LEFT154318229815$113.20
21CONSOLE RIGHT154318229816$113.20
22HOLLOW BOLT654318253828$7.54
23EMERGENCY MECHANISM COVER154348268983$5.26
24ShaftLINKS154347042479$30.80
24ShaftRECHTS154347042480$30.80
25Clip center454317045700$1.91
26Clip exteriorLINKS254317046643$5.05
26Clip exteriorRECHTS154317046644$5.05
27Mounting screw3X16654317043555$0.98
28Fillister head screwM4X10954317043554$1.67
29Combination nutM4254317043556$1.67
30PROTECTION CAP254317043557$1.81
31Microswitch154348263825$59.38
32Ball pin, bottom154348268981$4.88
32Ball pin, top154348268982$4.56
33Lamination, tension strap154317056103




FOLDING TOP MOUNTING PARTS:----


Parts diagram

No.DescriptionSupplementQty From Up To Part NumberPriceNotes
01Cowl gasket154318229828$322.93
02LEFT CENTRE WINDOW GUIDE154318229829$109.02
02RIGHT CENTRE WINDOW GUIDE154318229830$109.02
03Window guide, rear154318229833$304.90
04Blind rivet4X8,5X41,5654311972215$0.98
05Blind rivet4X10X57454311972213$1.55
06RAIL REAR LEFT154318263823$34.28
06RAIL REAR RIGHT154318263824$34.28
07Gas pressurized spring254318268980$51.20
For vehicles with
Softtop, electromech. all-autom.
S399A=Yes
07Gas pressurized spring154348268979$46.54
08RAIL F TENSION HANGER154318268978$41.59
09Loop1X15X220254317056104
09TENSION ROPE254318268977$14.87
10INSULATING HOSEB13X0.8 SW254317051484$6.86
11Spring254311932747$3.05
12Sensor for main pillar154348267936$102.90
13Sensor top104/200154348268997$102.90
13Sensor104/200154347059587$102.90
14Adjusting screw1054317043552$3.12
15Fillister head screwM6X201054317043553$1.67
16Mounting parts kit, potentiometer154347051490$2.30
17Clip254317051467$3.04
18Pin for sensor (angle of rotation)154347073381$2.28
19Pin for sensor (angle of rotation)M4X8104/200154347073382$21.21
See repair manual
TIS 6131801
20Rep.kit, sensor (angle of rotation)104/200154347066889$112.48
only in conjunction with
--Sensor104/200154347059587$102.90
21REPAIR KIT F COLUMN C CEILING TENS.ROPESCHWARZ154317070381$58.58
22Set of covers for latch fasteners154318268984$11.72
23Cover, tensioner left154318268989$6.74
23Cover, tensioner right154318268990$6.74
24Main pillar moulding, left154317117731$3.82
24Main pillar moulding, right154317117732$3.82
25Ball pin, bottom154348268981$4.88
25Ball pin, top154348268982$4.56
26REPAIR KIT F COLUMN C COVER INSERT154317135351$125.28
27Main pillar cover, left154348268985$14.64
27Main pillar cover, right154348268986$14.64
28Socket housing6 POL.161138383300$3.47
only in conjunction with
--BUSHING CONTACT0,2- 0,5MM²?61130005199$1.88
--BUSHING CONTACT0,75MM²?61130006665$1.97




ELECTRO-HYDRAULIC FOLDING TOP PARTS:--------

Parts diagram

No.DescriptionSupplementQty From Up To Part NumberPriceNotes
01Hydro unit109/200154347025595$1,042.42
On vehicles built before 09/01, the
soft top module must be re-encoded
after replacing the hydraulic unit
01Hydro unit109/200154347025595$1,042.42
only in conjunction with
--Adapter wire f drive hydraulics109/200154347076030$17.98
02Left hydraulic cylinder, soft-top lid154348243269$245.94
03Right hydraulic cylinder, soft-top lid154348236956$245.94
04HoseLÄNGE 1005MM154347025601$198.21
05Relay154347025596$34.11
06Control unit154347025592$880.96
07Cylinder, left tensioner154347025599$325.43
08Set of tensioner cylinder31;32;33;34154347025600$1,086.13
09Hydraulic hose0;1;154347025591$298.51
10Bracket, hose line2154348242194$0.39
11Hydraulic hose, master cylinder, left21;22154347025597$241.76
12Hydraulic hose, master cylinder, right23;24154347025598$231.63
13Bracket hydraulic pump154348263217$4.42
14Quick-release coupling154347032914$104.92
15Sound insulation154347027560$76.16
16Hall sensor154347043558$42.79
17Master cylinder254347025593$325.43
18BALL PIN154317045701$4.74
19Adapter wire f drive hydraulics154347076030$17.98
20Bracket, hose line1054348268996$2.09
21Bracket, hose line454347053420$1.84
22Hydraulic oil250ML154347117733ENDED
23Bracket, Hall sensor154347042482$16.33


Folding top compartment:-------

Parts diagram


No.DescriptionSupplementQty From Up To Part NumberPriceNotes
01Folding top compartment154318232763$412.72
02Base plateVORN154318236836$13.00
03Base plateHINTEN154318236838$13.00
04Gas pressurized spring154318232767$30.55
05Stop buffer454318260805$1.35
06Pin854318236841$0.56
07Axial securing clip654318265776$0.39
08Base354318254779$2.91
09Stop bufferSCHWARZ151211970863$0.73
10Fillister head screwM61754317011012ENDED
11Bracket254317001867$3.98
12Absorber154318254778$7.52
13RETAINER SPRING154317001026$2.23
14Handle154318236839$6.61
15Microswitch154318236846$29.02
16Bearing bolt854318236840$1.45
17WHEATHER PROTECTION CAP154318236844$113.20
only in conjunction with
--Bracket154317001867$3.98
18HOOD COMPARTMENT GASKET154318260803$17.73
19Clamp154317007409$1.70
20WATER OUTLET HOSE154317043622$21.49


Wind deflector:-------

Parts diagram


No.DescriptionSupplementQty From Up To Part NumberPriceNotes
01Wind deflector154317037729$476.95
02SUPPORTING PLATELINKS154317037389$30.84
02SUPPORTING PLATERECHTS154317037390$30.84
03HANDLE LEFT154317037391$28.00
03HANDLE RIGHT154317037392$28.00
04Bag154347143262$104.85
05Wind deflector, left154317141835$107.95
05Wind deflector, right154317141836$107.95



The images in the list are quite big, so may be you will not be able to see full view of the pictures:----

Right click on the image and select option "open image in new web" if the image is not seen full or its very small to see.-----------


Part number 7 and 8 in the

ELECTRO-HYDRAULIC FOLDING TOP PARTS section are the main cylinders.
