Intake Air Temperature Sensor in Mass Airflow Sensor

Ford E250 IAT sensor Pin in MAF sensor.


On ford E250 V6 engine vehicle


the Intake Air temp Sensor is incorporated into the Mass Air Flow sensor.

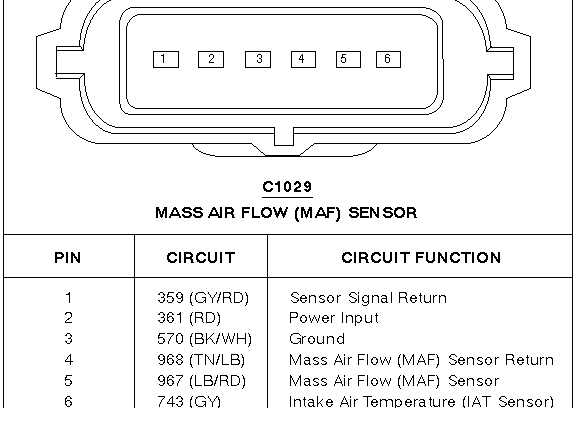

See the diagram shown below to confirm the IAT wires


Pin 1 and 6 are for the Intake Air sensor




These details will help.
Thanks.
