ice maker flap for side by side kenmore refrigerator

To get to the levers, you need to remove the front cover trim. Pay attention to where everything is before you remove parts and how the wiring is set up (over or under parts). There are two slots below the trim, use your blade screw driver and pop the trim.Some models have 2 screws and on some Kenmore models, it just pops off simply.Just see carefully before pulling it out, if there is screw seen.------
To view its parts diagram, click the link :---
--------
To order the part, click the link :---

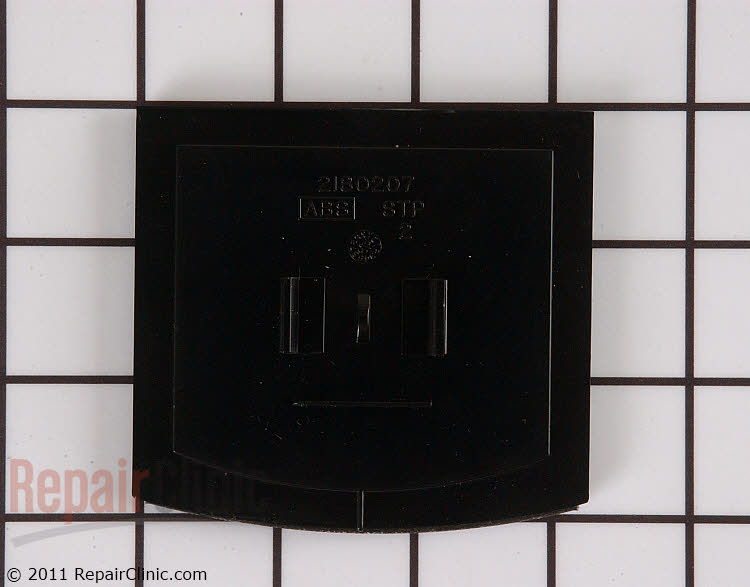

This is the flap,

----------
This is the complete flap assembly image, you can see the side plastic tabs, in this complete assembly:---


------------

@
